BLD150 LED Explosion Proof Lighting
ORDERING REQUEST/ACCESSORIES AVAILABLE
Different rated voltages
Different installation method
Different color temperature
Metal guard/cable gland/terminal box
- Power LED, service life over 60,000 hours
- Over 50% less energy consumption comparing to HID
- Easy to install, low maintenance costs
- Emergency type available, battery built-in
- Wide rated power range, 10-160W
- Zone 1, 2, 21, 22
- Detail
- Parameter
- Ordering Info

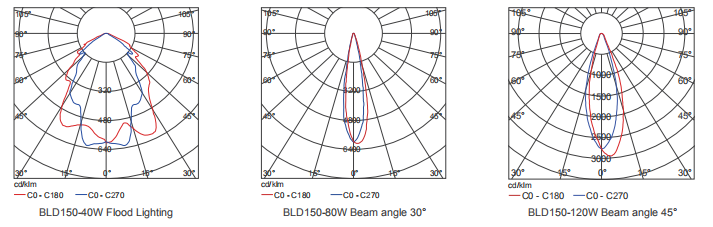

- Distribution Curve
- Installation
- 右侧展示信息
-
FEATURES● Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.● Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.● High light efficiency: dedicated honeycomb mirror enhances bigger lighting area, uniform illumination.● Dual-chamber structure: independent chambers for light source, driver and wiring ensure LED heat will not affect driver and wiring parts.● Optimized heat sink: aluminum housing with air diversion structure removes heat from the LEDs and driver to ensure longer life.● Wide voltage range: AC220V type can operate within 90-305V range.● Multi-protection: constant current with short-circuit and overvoltage protection.● Good EMC: excellent electromagnetic compatibility and anti-interference.● SMT technology: surface mounting technology keeps low working temperature of LED chip.● Standard material: copper-free Aluminum housing, surface with epoxy powder coating, tempered glass and stainless steel external hardware.● Emergency type: 10/20/40W can be battery built-in, last to 60 min working after power cut.
-
-
ORDERING REQUEST/ACCESSORIES AVAILABLEDifferent rated voltagesDifferent installation methodDifferent color temperatureMetal guard/cable gland/terminal box
-
-
-
- Power LED, service life over 60,000 hours- Over 50% less energy consumption comparing to HID- Easy to install, low maintenance costs- Emergency type available, battery built-in- Wide rated power range, 10-160W- Zone 1, 2, 21, 22
