HX1 LED Explosion Proof Lighting
ORDERING REQUEST/ACCESSORIES AVAILABLE
Different rated voltages
Different installation method
Different color temperature
Metal guard/cable gland/terminal box
- High lumen LED , 120lm/w, service life over 60,000 hours
- Unique tri-chamber structure
- 3,500 to 27,600 lumen LED high bay lighting
- Various mounting option
- Zone 1, 2, 21, 22 & UL CI D2, CII D2
- UL/ATEX/IECEX certified
- 5 year warranty
- Detail

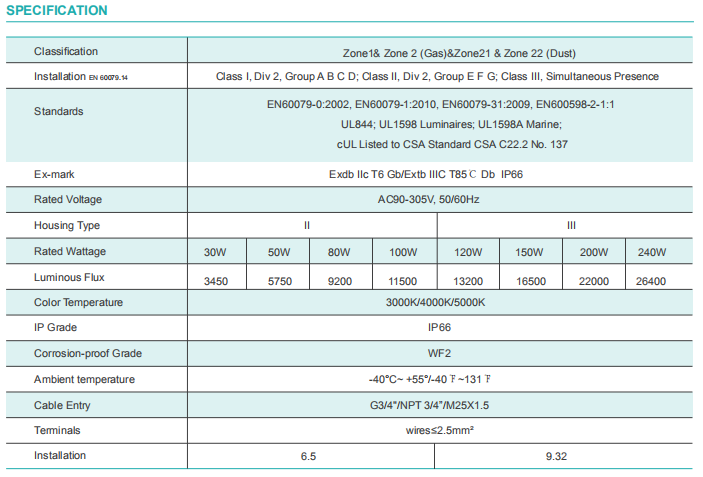

- Parameter
- Ordering Info

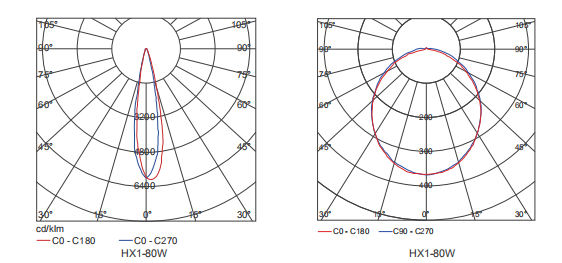

- Distribution Curve

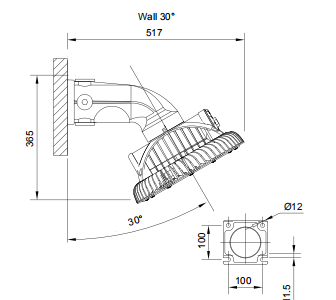

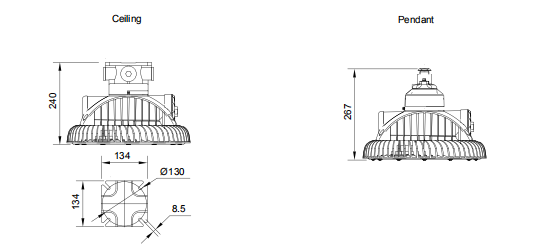

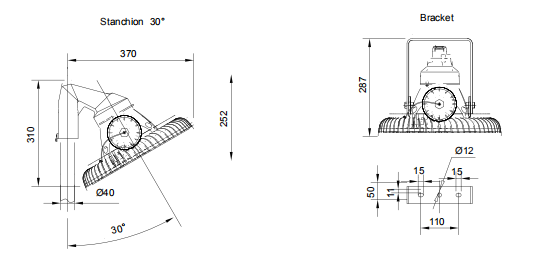

- Installation
- 右侧展示信息
-
FEATURES● Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.● Long life: last to 50,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.● Wide voltage range: AC220V type can operate within 90-305V range.● Good EMC: excellent electromagnetic compatibility and anti-interference.● SMT technology: surface mounting technology keeps low working temperature of LED chip.● Dual-chamber structure: independent chambers for light source, driver and wiring ensure longer driver life.● Standard material: copper-free Aluminum housing, surface with anodic coating, tempered glassKey words:
- hx1
- of
- to
- technology
- surface
- and
- life
- times
- driver
- with
-
-
ORDERING REQUEST/ACCESSORIES AVAILABLEDifferent rated voltagesDifferent installation methodDifferent color temperatureMetal guard/cable gland/terminal box
-
-
-
- High lumen LED , 120lm/w, service life over 60,000 hours- Unique tri-chamber structure- 3,500 to 27,600 lumen LED high bay lighting- Various mounting option- Zone 1, 2, 21, 22 & UL CI D2, CII D2- UL/ATEX/IECEX certified- 5 year warranty
