GLD8560 LED Weather Proof Area Lighting
ORDERING REQUEST/ACCESSORIES AVAILABLE
Different rated voltages
Different installation method
Different color temperature
Metal guard/cable gland/terminal box
LED 133LM/W, Service life over 60,000h.
Super conductive thermal phase transition technology.
High performance anti-glare technique.
Unique tri-chamber structure.
High voltage driver, simple and high reliablity.
3000 to 16500 lumen LED highbay lighting.
- Detail

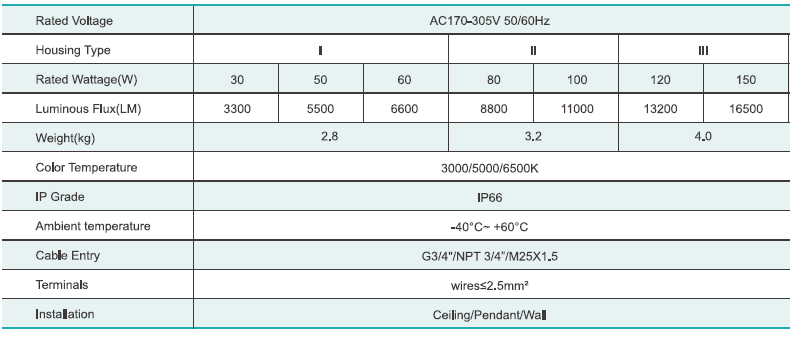

- Parameter
- Ordering Info

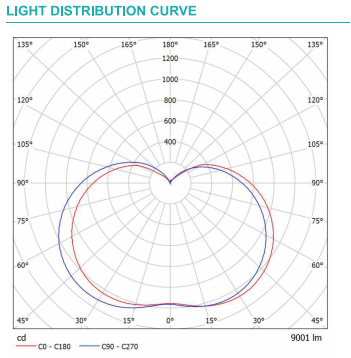

- Distribution Curve

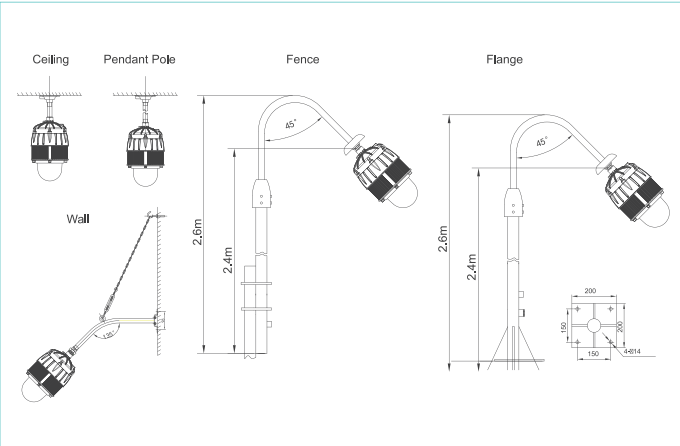

- Installation
- 右侧展示信息
-
• LED high efficiency reaches 133 lumen/watl;• High voltage drivinglower currentefficiency > 97%;• Advanced super thermal phase transition technology(STPT)high cooling efficiencylow temperatureensure long lifespan of LED;• Excellent uniform temperaturethe temp d'ierence of heat sink is within ±2℃;• Vetical fin design facilitates air flow and dust shedding;• Independent chambers for light sourcedriver and junction boxeasy to install;• Nano-scale anti-glare phosphor coating absorb harmful blue light with white light excitation,increase totallumen output;• Wide beam angle,uniform light distribution comfortable and healthy;• Compact sizelight weightweight is 25% less than traditional heat sinkand volume is 20% less.Key words:
- LED highbay light
-
-
ORDERING REQUEST/ACCESSORIES AVAILABLEDifferent rated voltagesDifferent installation methodDifferent color temperatureMetal guard/cable gland/terminal box
-
-
-
LED 133LM/W, Service life over 60,000h.
Super conductive thermal phase transition technology.
High performance anti-glare technique.
Unique tri-chamber structure.
High voltage driver, simple and high reliablity.
3000 to 16500 lumen LED highbay lighting.
